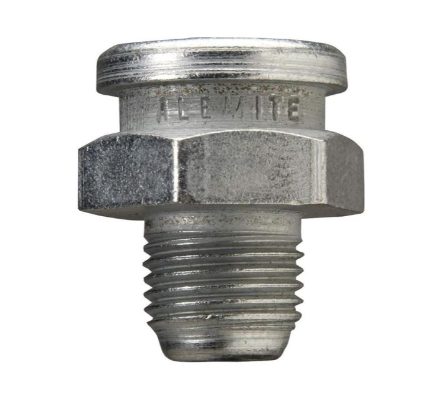

Alemite A1184 Button Head Fitting 1/8" Male PTF

Part Number: A1184

Description
Alemite A1184 is a standard button head grease fitting. Made in America. 1/8" NPT threads with an overall Length of 3/4 in., shank length of 11/32 in. And the hex size of 5/8 in.
It exceeds the 72-hour salt spray test and is RoHS compliant. Button head grease fittings are designed for high volume flow of grease and provide a smooth working surface for easy coupler engagement and removal. Alemite standard button head fittings are utilized in demanding applications, including heavy machinery, construction equipment, and off-road vehicles.

TECHNICAL SPECIFICATIONS
Fitting Type: Button-Head
Fitting Thread Size: 1/8 in
Fitting Thread Type: PTF
Overall Height (Inch): 3/4
Thread Standard: PTF
Operating Pressure (psi): 6000
Finish: Zinc
Hex Size (Inch): 5/8
Thread Length (Decimal Inch): 0.19 in
Standards: RoHS Compliant
Shank Length (Inch): 11/32
