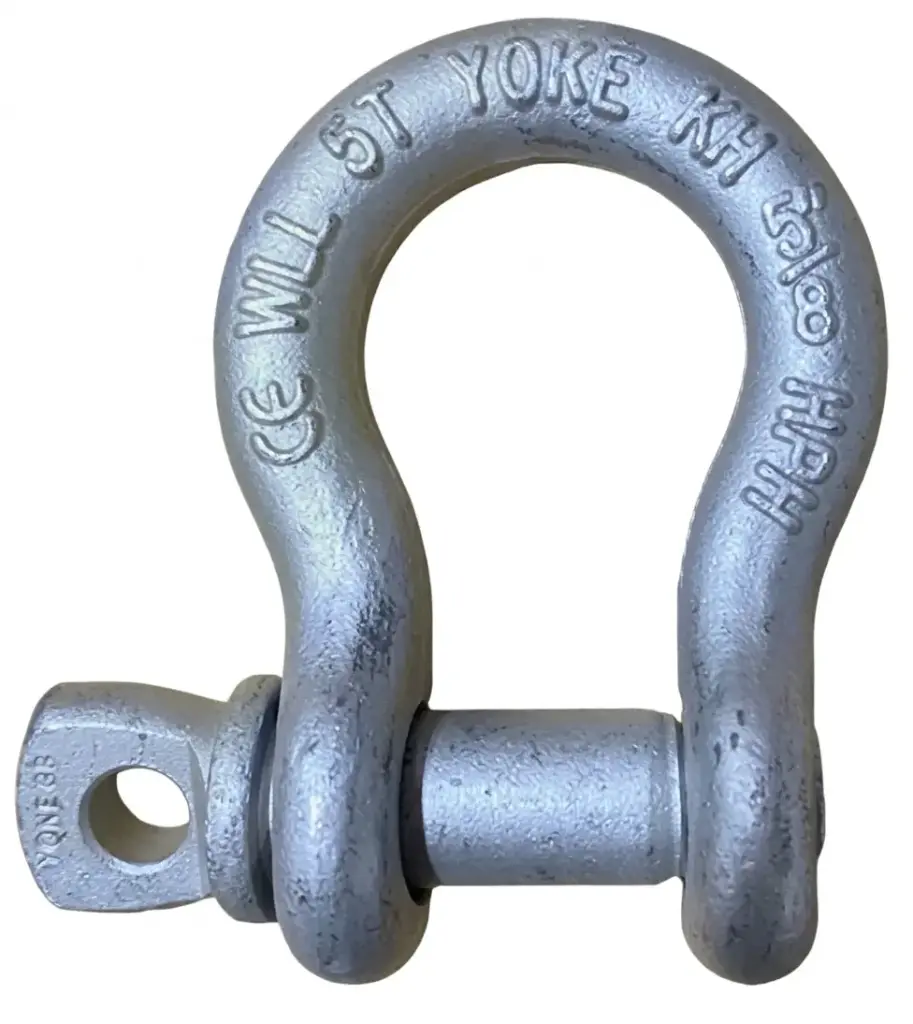

YOKE Alloy Screw Pin Anchor Shackle 5/8" - Plain
Part number: 8-807-16
Features:
- Forged alloy steel with alloy pin
- 100% magnaflux crack detection during manufacturing
- 20,000 cycle fatigue rated to 1.5 times Working Load Limit
- Minimum Ultimate Load is 5 times the Working Load Limit
- Maximum Proof Load is 2 times the Working Load Limit
Specifications:
- Size (Shackle Body Thickness): 16mm (5/8")
- Throat Opening (Width Between Ears): 27mm (1.06")
- Throat Depth: 61mm (2.40")
- Pin Size: 19mm (0.75")
- Pin Type: Screw Pin
- Finish: Plain
- Material: Alloy Steel
- Working Load Limit: 5.00 tons (11,000 lbs)
- Design Factor 5:1
